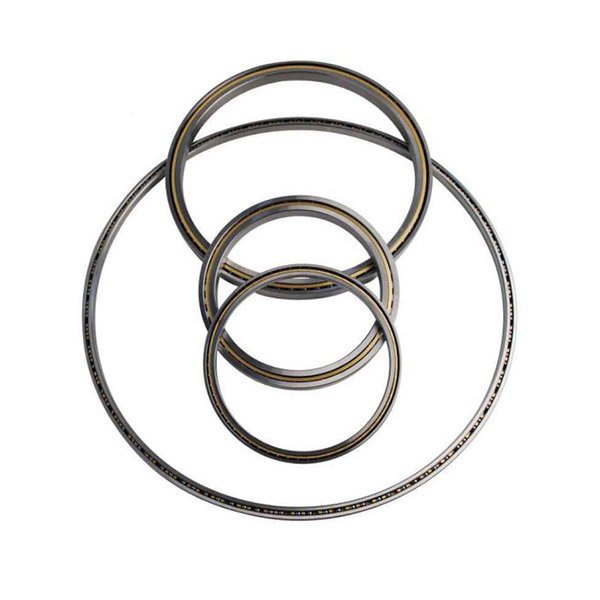

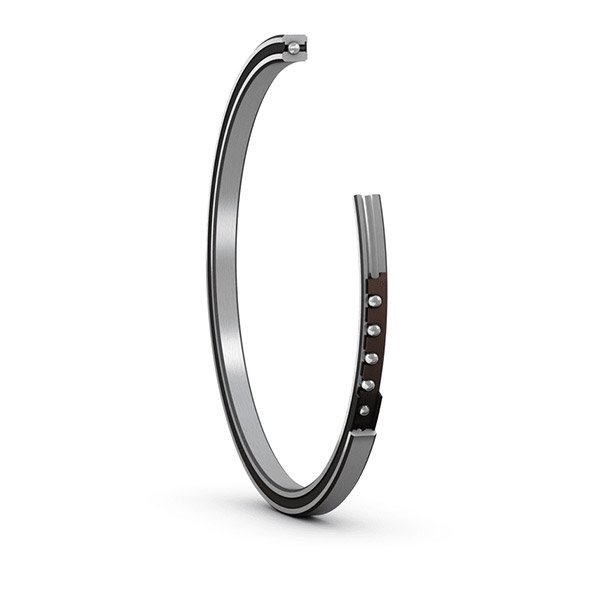

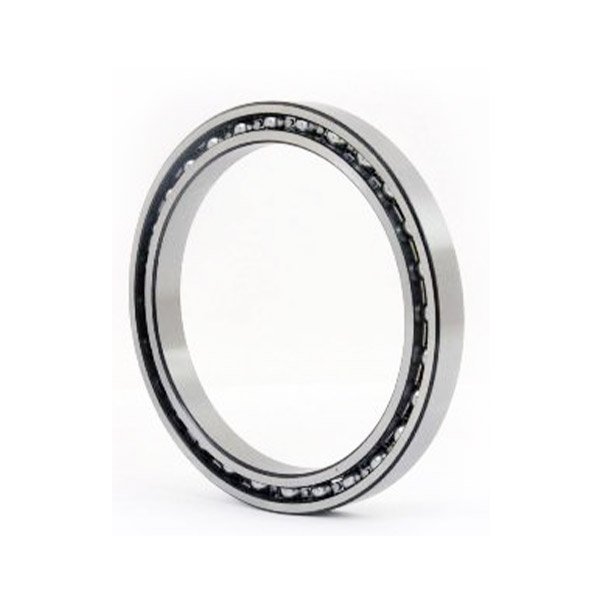

The ring of this series of bearings is very thin, the cross section is small, and it is characterized by light weight, low friction, high rigidity and high rotation accuracy. It is especially suitable for compact and light structures with high rigidity and large aperture. Thin section bearings are widely used in aircraft, aerospace, textile printers, medical equipment, radar communications, astronomical instruments and industrial robots.
The difference between thin-section angular contact ball bearings and standard angular contact ball bearings is that the cross-sectional dimensions are designed to be single, while the cross-sectional bearings and standard dimensions cannot be changed in a series. Will not increase with the increase in pore size. Therefore, this kind of thin-section bearing is called a uniform-section thin-section bearing. By using the same series of thin-section bearings in the entire product line, designers can standardize on common components.

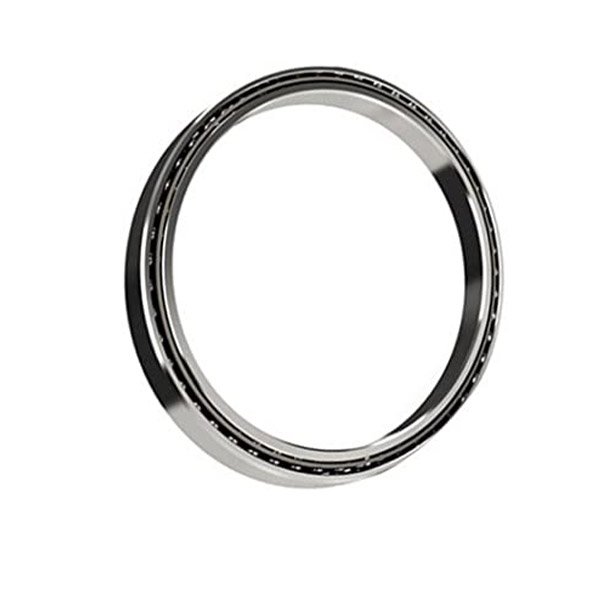

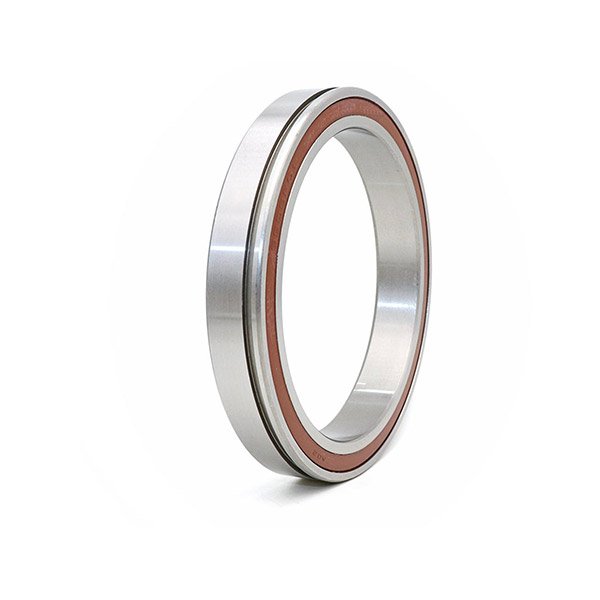

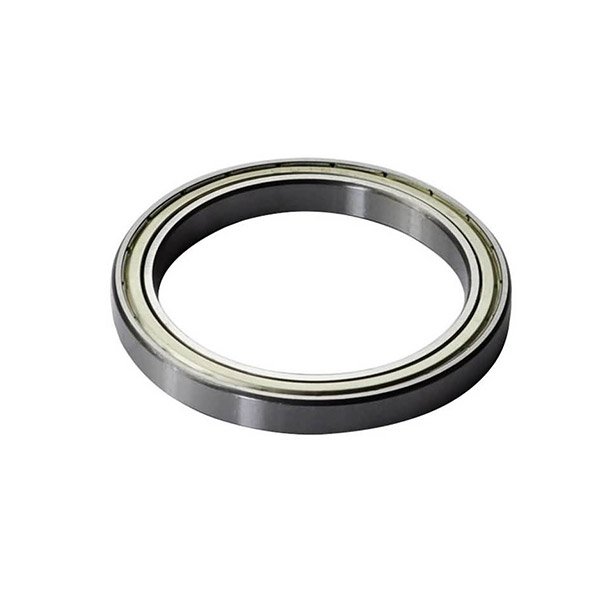

Thin-section sealed four-point contact ball bearings are also designed to install sealing devices on both sides on the basis of thin-section four-point contact ball bearings. For the structure of the sealing device, we have many choices. The speed is lower than the thin four-point contact ball bearing. The thin-section sealed bearing series is based on a single cross-section, which remains the same as the bore diameter increases.
